GL-5GR/Q2J Single-head,double-faced,vacuum sheeting packing machine series Rotating disc/direct compression

FEATURE

ARC SUPPRESSOR
When sparks occur,the special elecrtonic circuit on this machine works automatically and cuts high frequency immediately to suppress arcs and minimize damage to electrodes and materials.Alarm lamp also works simultaneously.

JAMMING PREVENTION DEVICE
Equipped with frequency stabilizer and high frequency magnetic leakage suppressor.This device prevents leakage of electromagnetic ardiation to avoid jamming other electrical instruments such as televisions and radios.etc.

SAFETY DEVICE
When the current exceeds its limits,the overload relay functions automatically to protect oscillation tubes and rectifier.Frequency deviation caused by misoperation is also prevented.

EASILY ADJUSTABLE TUNER
Output power can be adjusted at the tuner according to electrode size and material thickness.In addition,other control devices and special electrical circuits have cut down required welding time considerably to raise the machine productivity.

APPLICATION RANGE
Automobile/motorcar cushion,screen board,vehicle door sheet,special crust vacuum package,PVC double-sided vacuum sheeting package

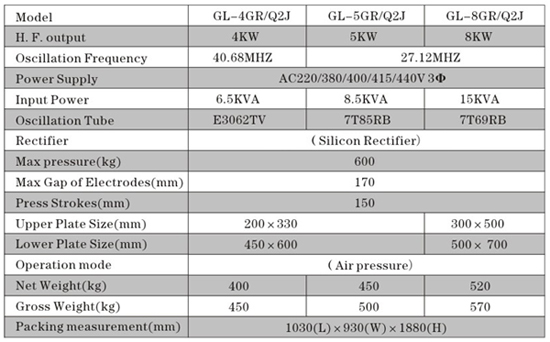

SPECIFICATIONS

The manufacturer reserves the right to modify the design,specificationgs mehanismes etc,without notice.

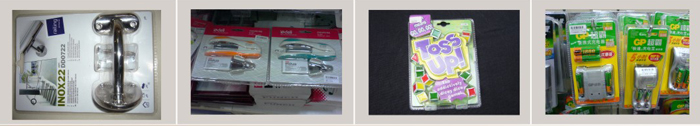

Samples photos
