GL-8GT/YJ
Double-head hydraulic H.F machine

FEATURE

ARC SUPPERSSOR
When sparks occur,the special electronic circuit on this machine works automatically and cuts high frequency immediately to suppress arcs and minimize damage to electrodes and materials.Alarm lamp also works simultaneously.

JAMMING PREVENTION DEVICE
Equipped with frequency stabilizer and high frequency magnetic leakage suppressor.This device prevents leakage of electromagnetic radiation to avoid jamming other electrical instruments such as televisions and radios,etc.

SAFETY DEVICE
When the current exceeds its limits,the overload relay functions automatically to protect oscillation tubes and rectifier.Frequency deviation caused by misoperation is also prevented.

HIGH POWER WELDER
Using a specially designed mechanism,the maximum pressure of foot pedal can rech up to 400KGS so as to meet most operating conditions.The high quality components make these machines work very smoothly and precisely.

EASILY ADJUSTABLE TUNER
Output power can be adjusted at the tuner according toelectrode size and material thickness.In addition,other control devices and special electrica circuits have cut down required welding time considerably to raise the machine productivity.

ADJUSTMENT FOR THE DISTANCE ON THE MACHINE HEAD
Adjust the distance the machine head if practical as the mould's size and height are different.Save working load while processing accuracy can reach up to 98%.

OIL PRESSURE PRESSURE INSTALLATION
The machine dispose pressure adding installation of oil pressure too.it can regulate the pressure reducing valve of oil pressure according to use condition(0kg-45kg),and it is good for the operating worker to reduce working load and improve the quality of H voltage product.The control part of oil pressure electrical equipment don't provide H circle oil pressure in succession turning and artificial controling.To change the operating mode,it can change the voltage processing handicraft greatly.

APPLICATION RANGE

Shoes,trademark,rain canvas,sand beach chair,portfolio,hand bag,sand beach bag,stationary,nameplate,vehicle cushion,sunshade board,costume embossing

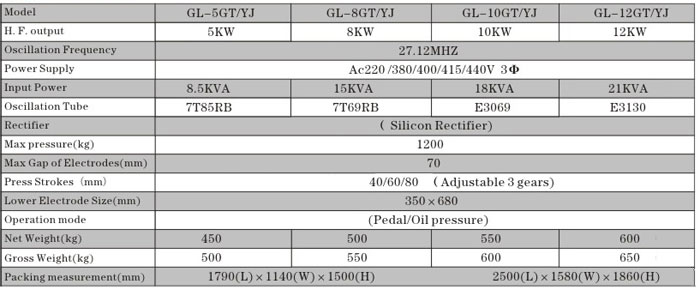

SPECIFICATIONS

本公司如有变更设计、规格结构等，恕不另作通知，本表仅作参考。版权所有翻印必究！

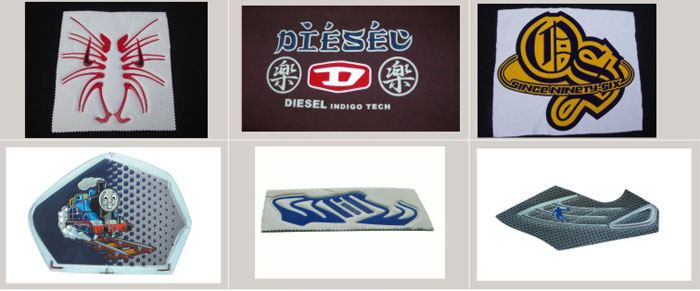

Samples photos
