GL-15GM/Q
Full automatic pneumatic/hydraulic large-size high Frequency Plastic Welding Machine

FEATURE
Stable high cycle:
The oscillating frequency applies international industrial band high cycle of 27.12MHZ±0.6%, with stable output frequency in accordance with international standard, is applicable to be used in different places.

High sensitivity ARC SUPPRESSOR:
The electronic circuit on this machine works automatically when sparks occur and cuts high frequency immediately to suppress arcs and minimize damage to electrodes and materials. Alarm lamp also works simultaneously.
Powerful output power:
It offers powerful high cycle power output adjustable by the high harmonic unit subject to the size of mould and the thickness of material. Its special high cycle circuit, high and stable output can complete thermowelding of product within a shortest time, to improve the quality and output of product.
SAFETY DEVICE:
When the current exceeds the limit, overload current relay will protect the oscillating tube and rectifier automatically. It can automatically cut off power when the mechanic cooling is insufficient, to avoid the frequency drifting caused by improper operation and the unnecessary loss of spare parts, to prolong the service life of machine.

USAGE
Pure PVC or soft & hard PVC leather that contain over 30% PVC, PVC transfers to genuine leather, special fabric PVC materials all these can be processed.

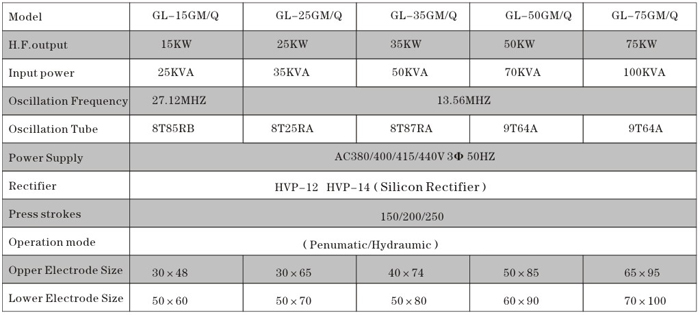

SPECIFICATIONS

The manufacturer reserves the right to modify the design,specificationgs mehanismes etc,without notice.

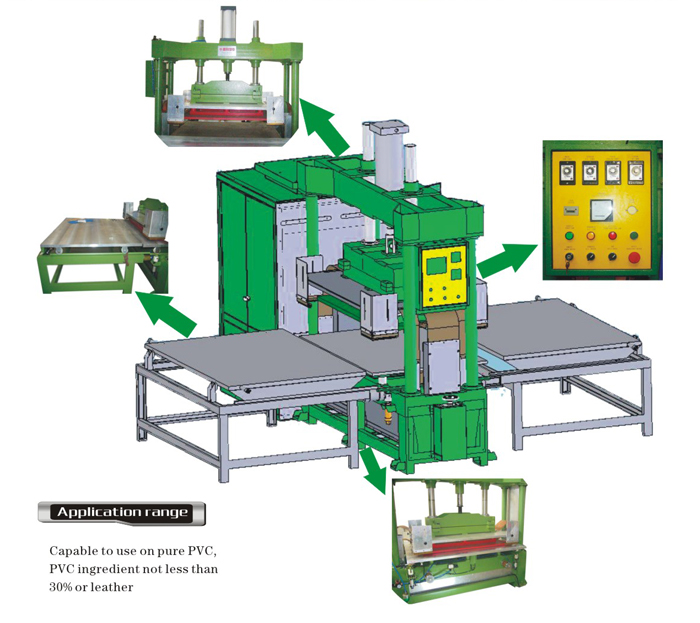

Samples photos
