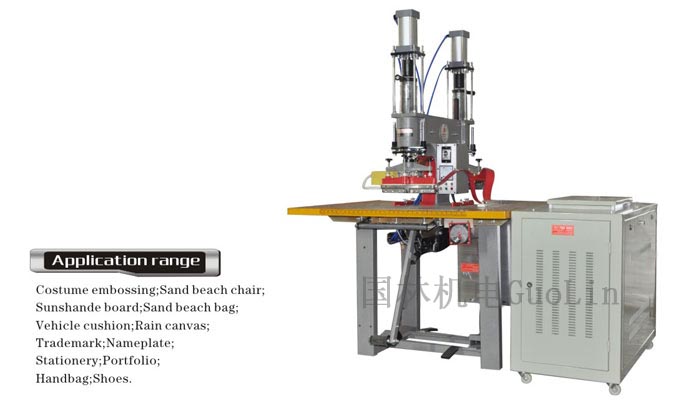

GL-5GT/QJ
Double-head high power standard series pedal/Pneumatic

FEATURE

ARC SUPPERSSOR
When sparks occur,the special electronic circuit on this machine works automatically and cuts high frequency immediately to suppress arcs and minimize damage to electrodes and materials.Alarm lamp also works simultaneously.

JAMMING PREVENTION DEVICE
Equipped with frequency stabilizer and high frequency magnetic leakage suppressor.This device prevents leakage of electromagnetic radiation to avoid jamming other electrical instruments such as televisions and radios,etc.

SAFETY DEVICE
When the current exceeds its limits,the overload relay functions automtically to protect oscillation tubes and rectifier.Frequency deviation caused by misoperation is also prevented.

HIGH POWER WELDER
Using a specially designed mechanism,the maximum pressure of foot pedal can reach up to 400KGS so as to meet most operating conditions.The high quality components make these machines work very smoothly and precisely.

EASILY ADJUSTABLE TUNER
Output power can be akjusted at the tuner according to electrode size and material thickness.In addition,other control devices and special electrical circuits have cut down required welding time considerably to raise the machine productivity.

ADJUSTMENT FOR THE DISTANCE ON THE MACHINE HEAD
Adjust the distance on the machine head if practical as the mould's size and height are different.Save working load while processing accuracy can reach up to98%.

APPLICATION RANGE
Shoe's upper,logo,sticker,rain coat sunshade.umbrella,handbag,plastic bag stationery,nameplate,vehicle cushion,sunshade board,costume embossing.

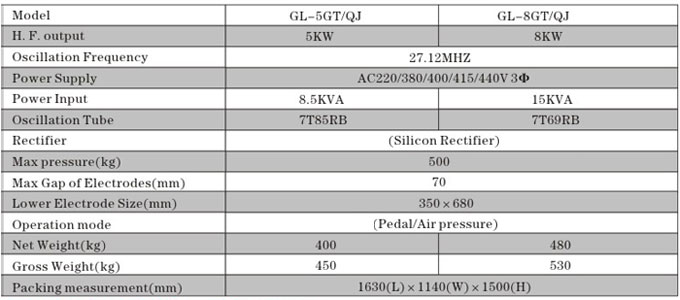

SPECIFICATIONS

Samples photos
